Combining a 50-meter depth rating, Janus-array piston transducer architecture, and sub-5-watt average power consumption, the River-ADCP-600-FA5 delivers reliable velocity profiling and discharge measurement in environments where high suspended-sediment loads, variable water stages, and off-grid power constraints challenge conventional ADCP instruments.
An Instrument Designed for the World’s Toughest Inland Waterways
Inland hydrology monitoring presents a unique set of engineering challenges. Rivers and canals in many regions—from Southeast Asia’s monsoon-fed waterways to the sediment-heavy channels of the Nile basin, from South American floodplains to irrigation networks across the Middle East and Africa—share common stressors: suspended sediment concentrations that spike during flood season and degrade acoustic bottom tracking, water levels that swing from less than a meter to torrent stage within hours, and remote monitoring stations that must operate entirely on solar power with no grid backup. When an ADCP loses bottom lock in turbid water, or when power draw exceeds a site’s solar budget, the data stream breaks—precisely when it is needed most.
The River-ADCP-600-FA5 was developed from the ground up to address these field conditions. Oceantek’s engineering team embedded with hydrology monitoring stations, irrigation districts, and flood-forecasting bureaus across diverse climatic zones to document deployment pain points. Every parameter, algorithm, and material choice in the new instrument answers a real operational requirement uncovered in the field.
“Reliable discharge data during flood events is non-negotiable—it directly informs evacuation orders, reservoir release decisions, and water allocation across entire watersheds,” said Wang, Technical Director at Oceantek Technology. “The River-ADCP-600-FA5 was engineered to maintain measurement integrity through the full hydrograph, from base flow to peak discharge, even in sediment concentrations that cause conventional profilers to lose reference. That was the design brief, and the field validation results confirm we delivered on it.”
Five Engineering Decisions That Define the Instrument
1. Bottom Tracking That Holds Through High Sediment Loads

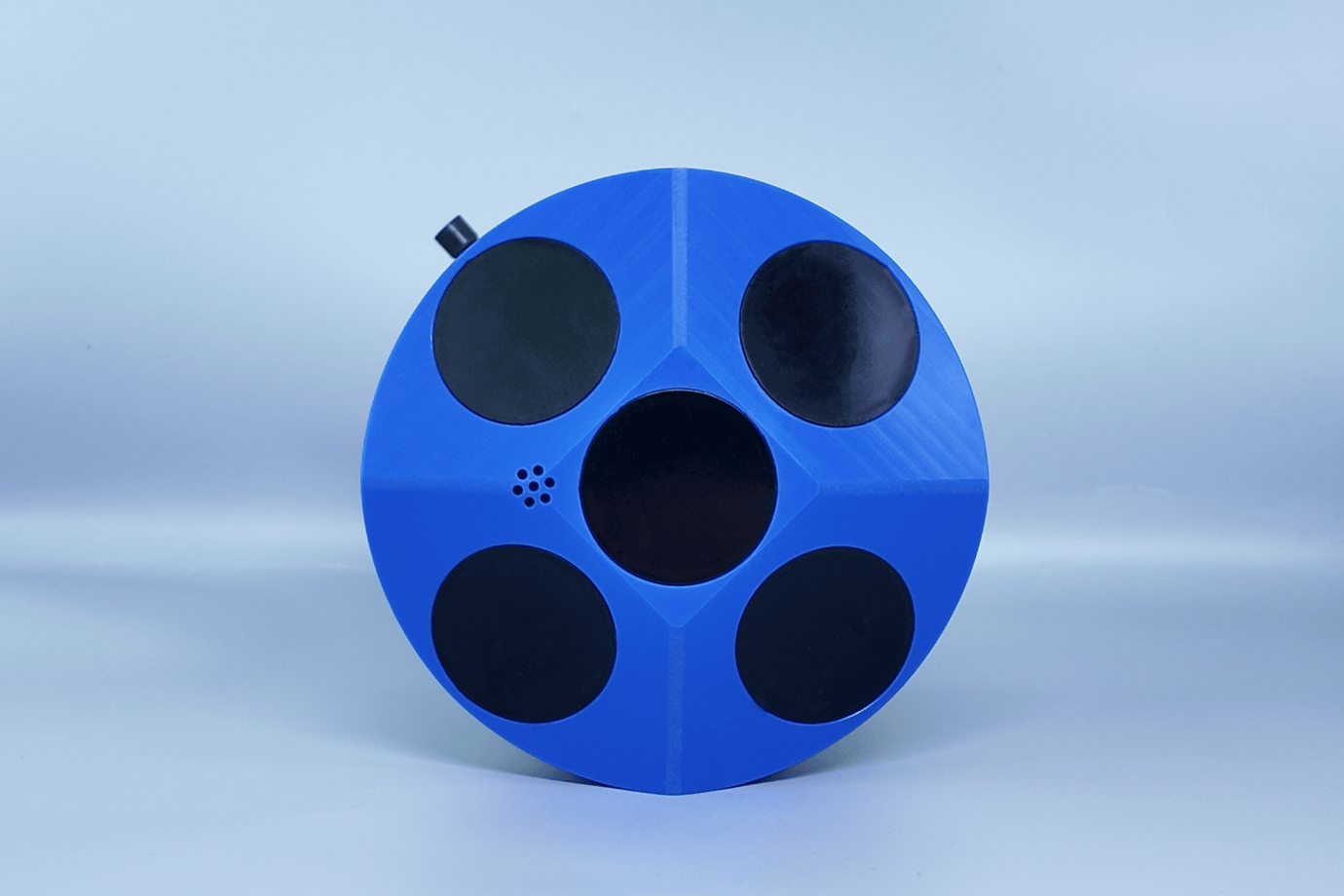

The most frequently cited field failure mode for ADCPs deployed in inland rivers is bottom-tracking dropout during sediment-laden flood conditions—precisely when discharge data is most critical for flood forecasting. The River-ADCP-600-FA5 employs a Janus-array piston transducer architecture paired with a bottom-tracking algorithm tuned on field data from turbid-water environments. The result is stable riverbed lock across suspended-sediment concentrations that cause conventional profilers to lose reference, yielding valid discharge measurements through the entire flood hydrograph rather than only the clean-water tail.
2. Sub-5-Watt Power Envelope for Genuine Solar-Only Autonomy
Off-grid hydrology stations rely on solar-battery systems that are often sized for a specific power budget. Drawing ≤5 W in continuous profiling operation, the River-ADCP-600-FA5 eliminates the need to oversize solar arrays or expand battery banks when deploying ADCP capability—a meaningful cost reduction for multi-station monitoring networks. The instrument’s 10–26 VDC wide-input tolerance further simplifies retrofitting into existing station infrastructure.
3. 64 GB Onboard Storage with Store-and-Forward Resilience
Cellular and satellite backhaul cannot be assumed at remote stations, and communication infrastructure may itself be compromised during severe weather events. The instrument buffers full-profile raw data to 64 GB of internal storage. When connectivity is restored—whether after a storm passes or during the next scheduled telemetry window—buffered data backfills automatically. No gaps in the record, no manual retrieval trips, and crucially, no lost flood-peak data.
4. Integrated Attitude and Compass Suite for Deployment-Ready Accuracy
Installation tilt, mounting-platform drift over time, and azimuthal offset introduce systematic errors that field teams often correct for manually in post-processing—a workflow that is both labor-intensive and error-prone. The River-ADCP-600-FA5 embeds a full attitude-and-compass sensor package (roll, pitch, and heading at ±1°/±1°/0.8° RMS, with 0.01° resolution), applying real-time compensation so that velocity profiles and discharge figures are accurate from power-on. For permanent stations where mounting structures may shift between service visits, this eliminates a persistent source of hidden data degradation.
5. Compact, Lightweight, and Built for Sustained Submersion

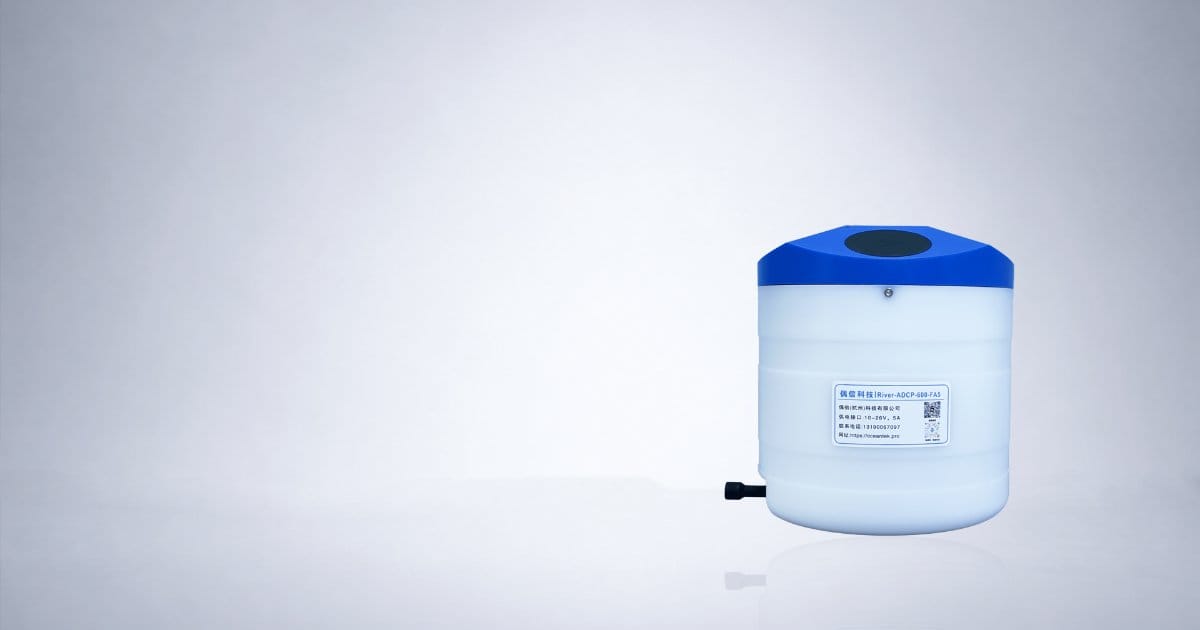

At Φ176 mm × 194 mm and ≤3.5 kg in air, the instrument can be deployed and retrieved by a single technician from bridge decks, lock gates, and narrow canal embankments. The POM (polyoxymethylene) housing provides 50-meter depth capability without the weight and corrosion challenges of metal alternatives, while also resisting biofouling during long-duration submerged deployments.
Availability and Support
The River-ADCP-600-FA5 is available for order immediately. Oceantek provides end-to-end support for hydrology agencies, irrigation authorities, and research institutions worldwide: pre-deployment site assessment and instrument configuration guidance, on-site installation and commissioning, calibration and maintenance services, and ongoing technical support.
